SmartPlate Home Position Calibration

Device
Einstein™: Control Software version 5.0 and higher
Note: This SmartPlate Home Position Calibration is only available for printers with the upgraded build platform, the SmartPlate. Please contact Customer Support to get more information on the upgraded build platforms for your printer.

SmartPlate is a new magnetized build plate customized for Einstein™ printers to achieve an easier home position in minutes versus hours. Now with a new better surface for adhering during the print process, SmartPlate is a simple, intelligent Einstein™ add-on to upgrade efficiency – and is easy to install.

Prerequisite:

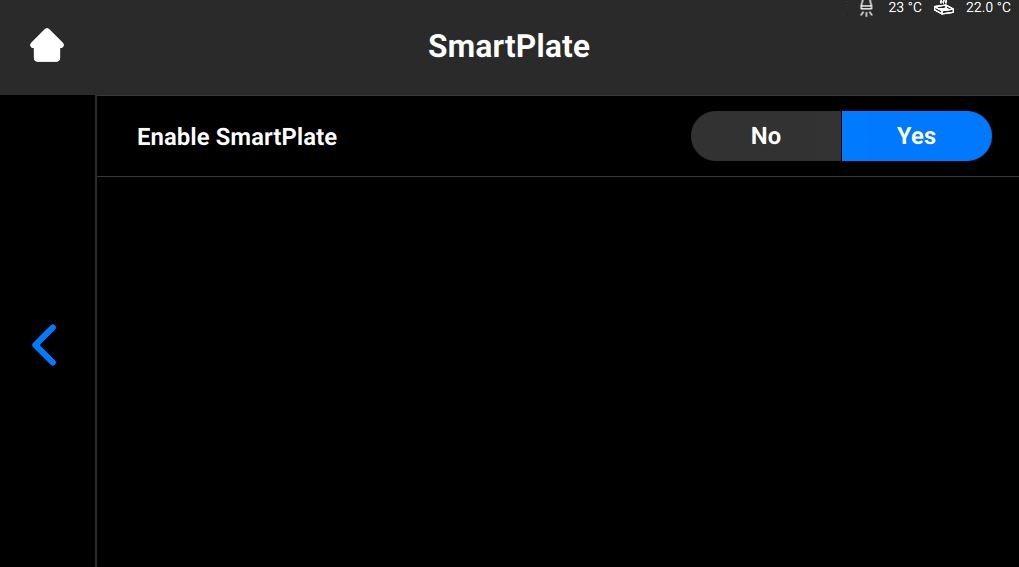

  • Navigate to Settings > Printer Settings > SmartPlate and toggle Yes to enable the SmartPlate Calibration

    Procedure

  1. Navigate to Settings > Move & Calibration > SmartPlate Calibration.

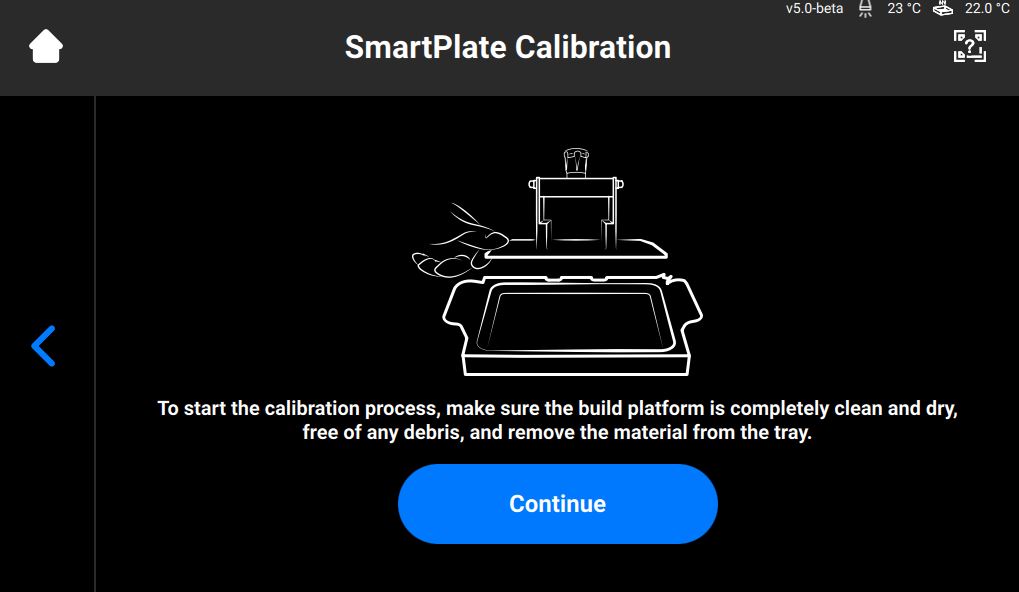

  2. Make sure the build platform is completely clean and dry, free of any debris, remove the material from the tray, and select Continue.

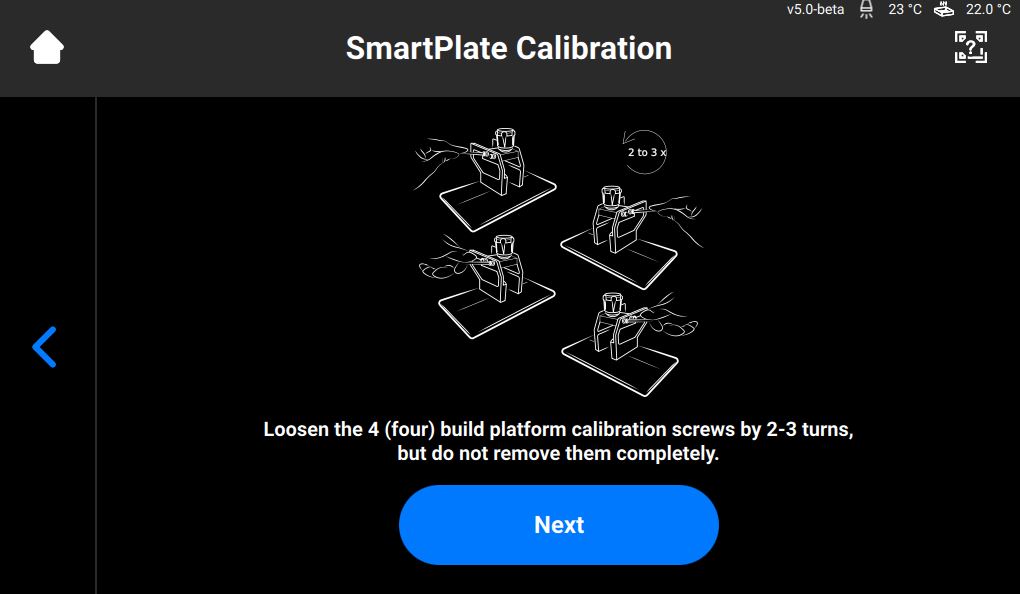

  3. Using the M4 hex wrench, loosen the 4 (four) build platform calibration screws by 2-3 turns as shown on the printer screen, but do not remove them completely. Select Next on the printer touch screen.

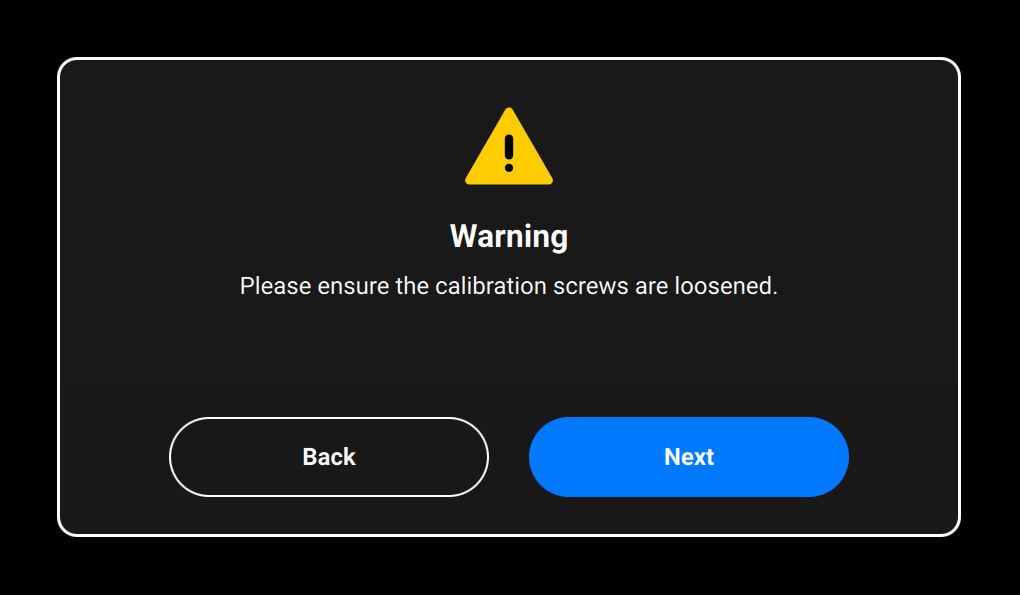

  4. Ensure the calibration screws are loosened and select Next.

    Tip: All four screws should be at the top of the slots. The platform should be able to wiggle freely.

    → The following message appears.

  5. Select Next.

    → The build platform is moving to a fixed Home position.

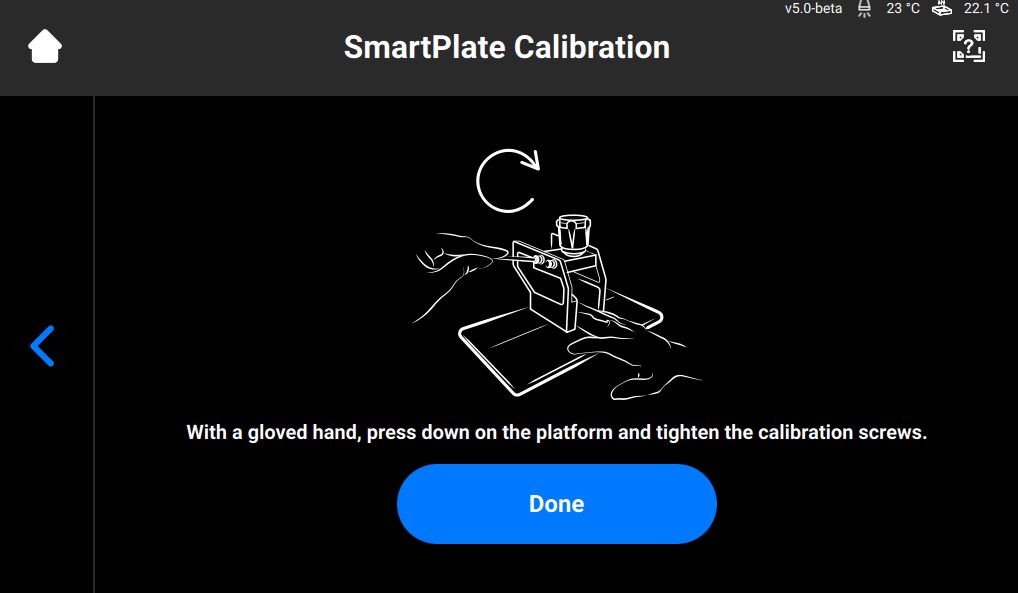

  6. With a gloved hand, press down on the platform and tighten the calibration screws. Select Done on the printer screen.

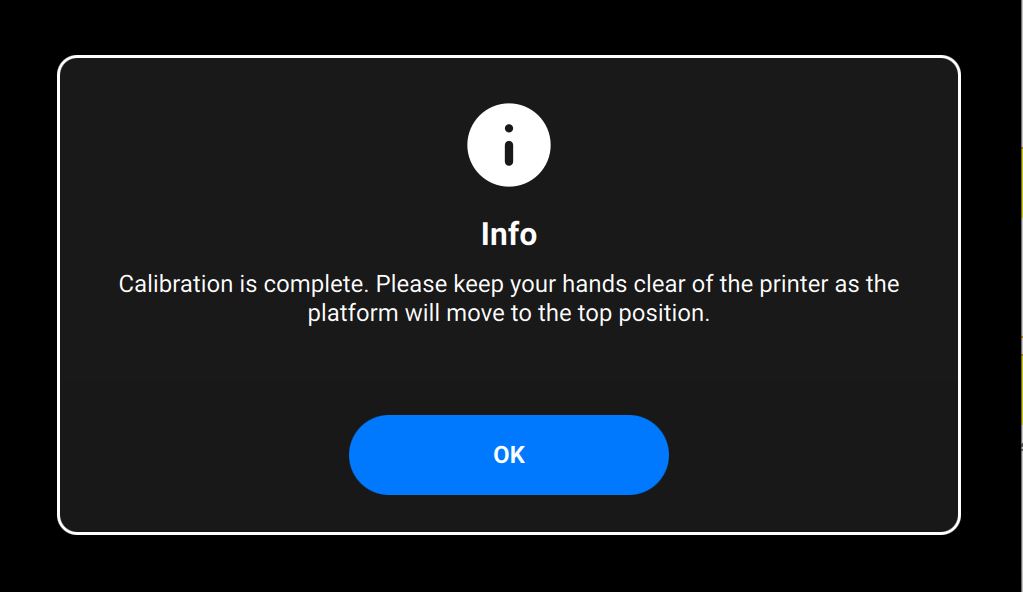

    → The Home position calibration is complete and the following message appears.

  7. Select OK.

    → The build platform is moving to the Zero position and the new Home position is saved.

    → The confirmation message appears.

  8. Select OK.

    → The printer restarts and the new Home position is applied.
